AC/ DC HIGH VOLTAGE BREAKDOWN TESTERS



RR – AC DC HIPOT TESTERS can perform such precise dielectric test in a cost effective manner without any compromise on safety. Our hipot testers are custom made to suit needs of various industries and product ranges. A Singe tester can be used for conducting both AC and DC Insulation Testing
.
TECHNICAL SPECIFICATION:
INPUT: 230 V – SINGLE PHASE / 415 V – TWO OR THREE PHASE

OUTPUT RANGE: 1 KV AC TO 100 KV AC DC

CURRENT RANGE: 5 MILLI AMPERE TO 1000 MILLIAMPERE ( HIGHER AMPERE MODELS ALSO AVAILABLE)

COOLING: AIR COOLED OR OIL COOLED AS PER REQUIREMENT.

ACCESSORIES: ALL UNITS UPTO 100 KV COME WITH 3 METER NON SHIELDED HV CABLE

FEATURES
- Precise and accurate measurement of Insulation levels
- Available in ranges from 1 KV to 200 KV AC
- Zero interlock and Breakdown indicating buzzer
- Seprate Analog/ Digital meters for AC and DC
- Rectifier Bank
- Resin cast / Oil cooled Transformers designed to ensure maximum safety
- Air cooled or Oil cooled control panels
- Manual / Automatic options for control panel
- Zero Interlock for HV ensuring HV is not activated unless variac is at zero
- Ground Fault indicator cum Protection
- Fast Acting Tripping – sensing both Input and Output Current Levels
- Easy to use interface
- Ensures a trouble free operation for a lifetime without much maintenance
- Customized to suit testing needs of customer
- Use of Standard components all confirming to CE standards

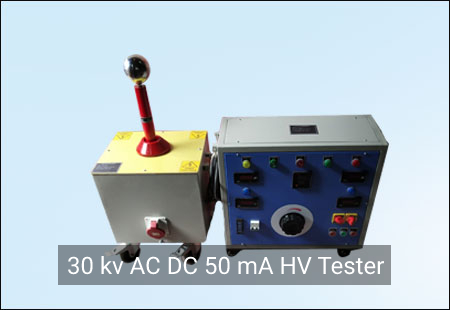

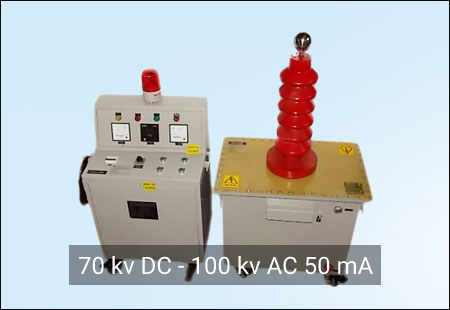

30 kv AC DC 50 mA HV Tester 70 kv DC - 100 kv AC 50 mA
30 kv AC DC 50 mA HV Tester 70 kv DC - 100 kv AC 50 mA




THE SALIENT FEATURES INCLUDE

• POLARITY IN DC CAN BE REVERSED IN SELECT MODELS

• EASY TO OPERATE , COMPACT AND STURDY.

• MAXIMUM OPERATOR SAFETY

• PANEL MOUNTED CONTROLS & INDICATORS WITH EASY LEGEND.

• ANALOG OR DIGITAL METERS

• AUDIO VISUAL INDICATION OF HIGH VOLTAGE TEST STATUS

• ZERO INTERLOCK FOR HT

• ELECTRONIC FAST ACTING OVER CURRENT TRIPPING DEVICE SENSING
HT CURRENT DIRECTLY WITH SELECTABLE LEVELS.

• HIGH VOLTAGE TRANSFORMER EPOXY MOULDED / OIL COOLED

• CONTROL PANEL AIR COOLED/ OIL COOLED – MOTORISED / MANUAL

• TIMER OPTIONAL
